Get Task
No authentication is required to get task
Known limitations

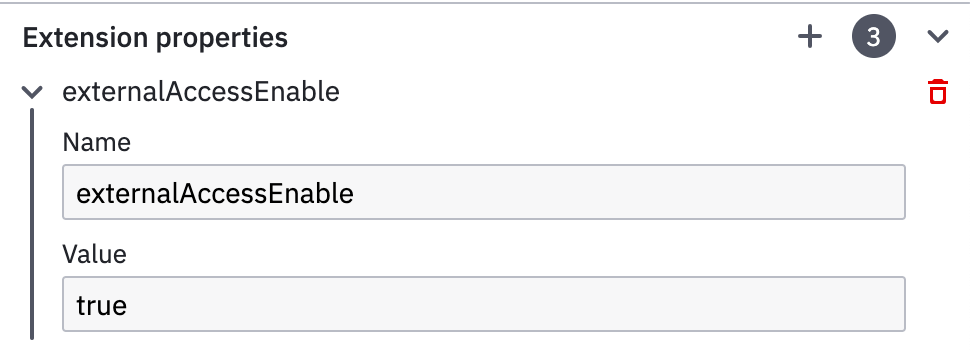

If you want tasks in the process to be accessible without authentication, you need to add some configuration when designing the process.
Method
GET /enhancement/open/task/{id}
Parameters
Path Parameters
Name | Description |
---|---|
id | The id of the task to be retrieved. |
Result
A JSON object corresponding to the Task
interface in the engine.
Its properties are as follows:
Name | Type | Description | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
id | String | The id of the task. | ||||||||||||
name | String | The tasks name. | ||||||||||||
assignee | String | The user assigned to this task. | ||||||||||||
created | String | The time the task was created. Default format* yyyy-MM-dd'T'HH:mm:ss.SSSZ . |
||||||||||||
due | String | The due date for the task. Default format* yyyy-MM-dd'T'HH:mm:ss.SSSZ . |
||||||||||||
followUp | String | The follow-up date for the task. Default format* yyyy-MM-dd'T'HH:mm:ss.SSSZ . |
||||||||||||
lastUpdated | String | The date the task was updated last. Default format* yyyy-MM-dd'T'HH:mm:ss.SSSZ . |
||||||||||||
delegationState | String | The delegation state of the task. Corresponds to the DelegationState enum in the engine.
Possible values are RESOLVED and PENDING . |
||||||||||||
description | String | The task description. | ||||||||||||
executionId | String | The id of the execution the task belongs to. | ||||||||||||
owner | String | The owner of the task. | ||||||||||||
parentTaskId | String | The id of the parent task, if this task is a subtask. | ||||||||||||
priority | Number | The priority of the task. | ||||||||||||
processDefinitionId | String | The id of the process definition this task belongs to. | ||||||||||||
processInstanceId | String | The id of the process instance this task belongs to. | ||||||||||||
caseExecutionId | String | The id of the case execution the task belongs to. | ||||||||||||
caseDefinitionId | String | The id of the case definition the task belongs to. | ||||||||||||
caseInstanceId | String | The id of the case instance the task belongs to. | ||||||||||||
taskDefinitionKey | String | The task definition key. | ||||||||||||
suspended | Boolean | Whether the task belongs to a process instance that is suspended. | ||||||||||||
formKey | String | If not null, the form key for the task. | ||||||||||||
camundaFormRef | String | If not null, the form binding for the Camunda Form with the following properties.
|
||||||||||||
tenantId | String | If not null, the tenantId for the task. | ||||||||||||
formData | Object | The task form |
* For further information, please see the documentation.
Response Codes
Code | Media type | Description |
---|---|---|
200 | application/json | Request successful. |
200 | application/hal+json | Request successful. In case of an expected HAL response. |
404 | application/json | Task with given id does not exist. See the Introduction for the error response format. |
Example
Request
GET /task/anId
Response
{"id":"anId",
"name":"aName",
"assignee":"anAssignee",
"created":"2013-01-23T13:42:42.000+0200",
"due":"2013-01-23T13:49:42.576+0200",
"followUp":"2013-01-23T13:44:42.437+0200",
"delegationState":"RESOLVED",
"description":"aDescription",
"executionId":"anExecution",
"owner":"anOwner",
"parentTaskId":"aParentId",
"priority":42,
"processDefinitionId":"aProcDefId",
"processInstanceId":"aProcInstId",
"caseDefinitionId":"aCaseDefId",
"caseInstanceId":"aCaseInstId",
"caseExecutionId":"aCaseExecution",
"taskDefinitionKey":"aTaskDefinitionKey",
"suspended": false,
"formKey":"aFormKey",
"camundaFormRef": {
"key": "aCamundaForm",
"binding": "version",
"version": 3
},
"tenantId":"aTenantId"
"formData": {}
}
